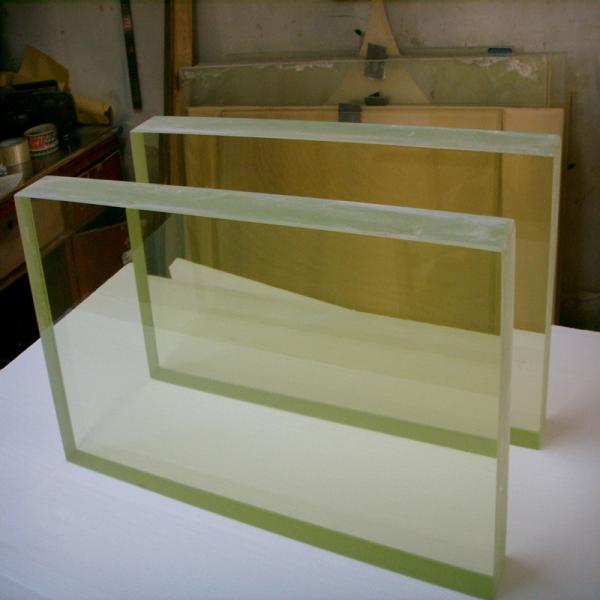

2.1mmPb Lead Equivalent Radiation Protection Lead Glass Frame 10mm Thickness
Quick Detail:
· Size can be customized
· Thickness 10mm
· Lead equivalent 2.1mm Pb
· Low MOQ
· with frame and without frame both available
· CE Certificate
· Packing in wooden case
Description:
We can offer different thicknesses and customized sizes of lead glass.
It is widely and mainly used for X-ray CT Installation Projects.
To provide viewing of the patient in the x-ray room while providing protection to the operator,
lead glass viewing windows can be furnished in the barrier.
Specification:
| Equivalent |
| Standard Thickness Glass |
| Lead Glass(mmPb) | 1.8-2.0 | 2.5-2.7 | 3.0-3.2 |
| Thickness(mm) | 9-10 | 11-12 | 14-15 |
| X-Ray peak voltage(kv) | 150 | 150 | 200 |
We can offer different and customized sizes of lead glass for X-ray and CT Room installation.
Surely we can also offer a lead door for shielding materials.
| | 8mm (1.7mmpb) | 10mm (2.1mmpb) | 12mm (2.6mmpb) | 15mm (3.3 mmpb) | 18mm (3.96 mmpb) | 20mm (4.4 mmpb) | 25mm (6.71 mmpb) |
| 200*300 | 200*300*8 | 200*300*10 | 200*300*12 | 200*300*15 | 200*300*18 | 200*300*20 | - |
| 300*400 | 300*400*8 | 300*400*10 | 300*400*12 | 300*400*15 | 300*400*18 | 300*400*20 | - |
| 400*600 | 400*600*8 | 400*600*10 | 400*600*12 | 400*600*15 | 400*600*18 | 400*600*20 | - |
| 600*800 | 600*800*8 | 600*800*10 | 600*800*12 | 600*800*15 | 600*800*18 | 600*800*20 | - |
| 600*900 | 600*900*8 | 600*900*10 | 600*900*12 | 600*900*15 | 600*900*18 | 600*900*20 | - |
| 1000*800 | 1000*800*8 | 1000*800*10 | 1000*800*12 | 1000*800*15 | 1000*800*18 | 1000*800*20 | 1000*800*25 |
| 1200*800 | 1200*800*8 | 1200*800*10 | 1200*800*12 | 1200*800*15 | 1200*800*18 | 1200*800*20 | 1200*800*25 |
| 1200*900 | 1200*900*8 | 1200*900*10 | 1200*900*12 | 1200*900*15 | 1200*900*18 | 1200*900*20 | 1200*900*25 |
| 1200*1000 | 1200*1000*8 | 1200*1000*10 | 1200*1000*12 | 1200*1000*15 | 1200*1000*18 | 1200*1000*20 | 1200*1000*25 |
| 1200*1200 | - | 1200*1200*10 | 1200*1200*12 | 1200*1200*15 | 1200*1200*18 | 1200*1200*20 | 1200*1200*25 |
| 1500*900 | - | 1500*900*10 | 1500*900*12 | 1500*900*15 | 1500*900*18 | 1500*900*20 | 1500*900*25 |
| 1500*1000 | - | 1500*1000*10 | 1500*1000*12 | 1500*1000*15 | 1500*1000*18 | 1500*1000*20 | 1500*1000*25 |
| 1500*1200 | - | 1500*1200*10 | 1500*1200*12 | 1500*1200*15 | 1500*1200*18 | 1500*1200*20 | 1500*1200*25 |
| 1600*1000 | - | 1600*1000*10 | 1600*1000*12 | 1600*1000*15 | 1600*1000*18 | 1600*1000*20 | 1600*1000*25 |
| 1600*1200 | - | 1600*1200*10 | 1600*1200*12 | 1600*1200*15 | 1600*1200*18 | 1600*1200*20 | 1600*1200*25 |
| 1800*1000 | - | 1800*1000*10 | 1800*1000*12 | 1800*1000*15 | 1800*1000*18 | 1800*1000*20 | 1800*1000*25 |
| 1800*1200 | - | 1800*1200*10 | 1800*1200*12 | 1800*1200*15 | 1800*1200*18 | 1800*1200*20 | 1800*1200*25 |
| 2000*1000 | - | 2000*1000*10 | 2000*1000*12 | 2000*1000*15 | 2000*1000*18 | 2000*1000*20 | 2000*1000*25 |
| 2000*1200 | - | 2000*1200*10 | 2000*1200*12 | 2000*1200*15 | 2000*1200*18 | 2000*1200*20 | 2000*1200*25 |
| 2400*1200 | - | 2400*1200*10 | 2400*1200*12 | 2400*1200*15 | 2400*1200*18 | 2400*1200*20 | 2400*1200*25 |
Notices:
1. The surface of lead glass is more easily scratched than that of ordinary glass and should be handled with care.
2. As lead glass materials are rich in lead and barium, lead glass is easy to be contaminated by acid and base,
and is not easy to be installed or stored in a sour or humid environment.
3. When installation, the glass must be mismatched with the wall protection material to prevent radiation leakage at the joint.
4. Lead glass is a brittle material with a large proportion, so it must be handled gently when it is moved.
Application:
It is mainly used for diagnostic X-ray machine rooms, CT, ECT, PET, ct-pet, and other machine rooms,
as well as observation of Windows on the protective screen of protective doors.
It is mainly used in the manufacturing of optical instruments, art vessels, etc.
It is also known as a medical X-ray radiation-proof lead glass plate in the medical field.
The followed picture is our customers use our big size with 1500mm size x 3000mm size for their CT Room
installation.
FAQ:
Q1. Can I have a sample order for lead glass?
A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Usually 5-7 working days.
Q3. Do you have any MOQ limit for led light orders?
A: Low MOQ, 1pc is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by Air and Sea.
Q5. How to proceed with an order for lead glass?
A: Firstly let us know your requirements or size, thickness and also quantity.
Secondly, We quote according to your requirements or our suggestions.
Thirdly customer confirms.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: We can offer a sticky label on a wooden case with OEM service.
