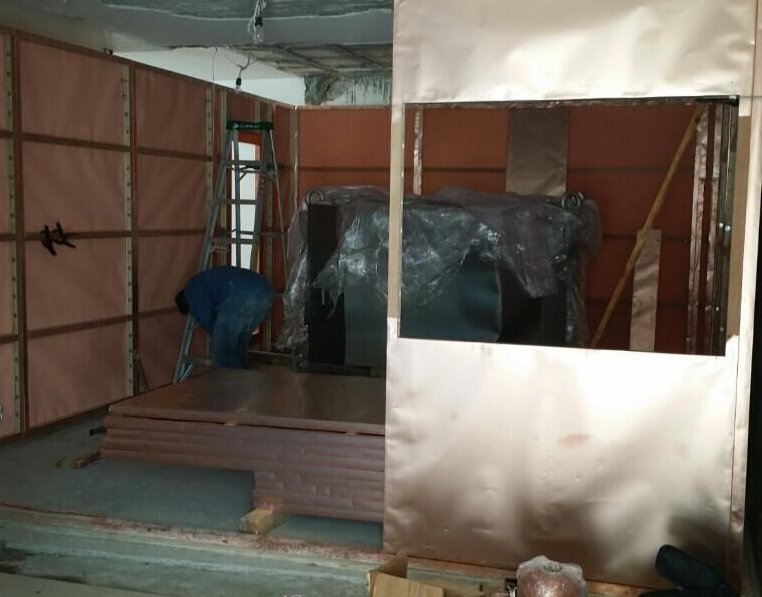

3oz thickness Electrodeposited Copper Foil Shielding for MRI RF Cage room
Description:
There are two types of Copper foil.
The first one is elctrodeposited copper foil
The second one is rolled annealed copper foil.
The difference of them one is the different production techniques., another one is the colour.
The colour of ED copper foil one side is shiny, the other side is matte. But the rolled annealed copper foil both side is shiny.
Ed copper foil
The standard Thickness are 1oz, equal to 0.035mm, 2oz(0.07mm), 3oz(0.105mm), 4oz(0.14mm), 5oz(0.175mm). The standard Width of 1oz,
2oz is 1280mm, 1290mm. 3oz, 4oz is 1320mm, 5oz is 1370mm. It also can be customized.
Ra copper foil
The standard Thickness are 0.1mm, 0.15mm, or 0.2mm.
The standard Width is 600mm. If you want other size, you can also contact with us. And If you are interested in
our other products, you can also contact us by personal message.
Specification:
| Quality Items | General Technical Terms |
| Normal Thickness | 2oz | 3oz | 4oz | 5oz | 6oz |
| 0.07mm | 0.105mm | 0.140mm | 0.175mm | 0.210mm |
| Area Weight(g/m2) | 560-610 | 838-960 | 1100-1280 | 1380-1600 | 1650-1920 |
| Tensile Strength | Room Temperature | ≥28 | ≥28 | ≥28 | ≥28 | ≥28 |
| (kg/mm2) |
| Elongation | Room Temperature | ≥10 | ≥10 | ≥10 | ≥10 | ≥10 |
| (%) |
| Leakage Points (points/m2) | No |
| High Temperature Anti-Oxidization Performance(180℃/h) | No Oxidization |
| Width Tolerance | (+2.0,-2.0) |
FAQ:
A. What service can you offer?
a: High quality products, competitive price, warmly following until you receive, and also technical support during use once you need.
B. What is MOQ ?
b: 200kg per roll.
C. What is the delivery time?
c. 5-8 working days after receiving payment.
