Airflow System 50cm Honeycomb Emi Filter Ventilation Vent Shielding Panel
Quick Detail :
1. Brass Honeycomb with/without frame
2. Stainless Steel Honeycomb Filter used for Faraday Cage
3. Airflow System Honeycomb Vent for EMC Chamber
Description:

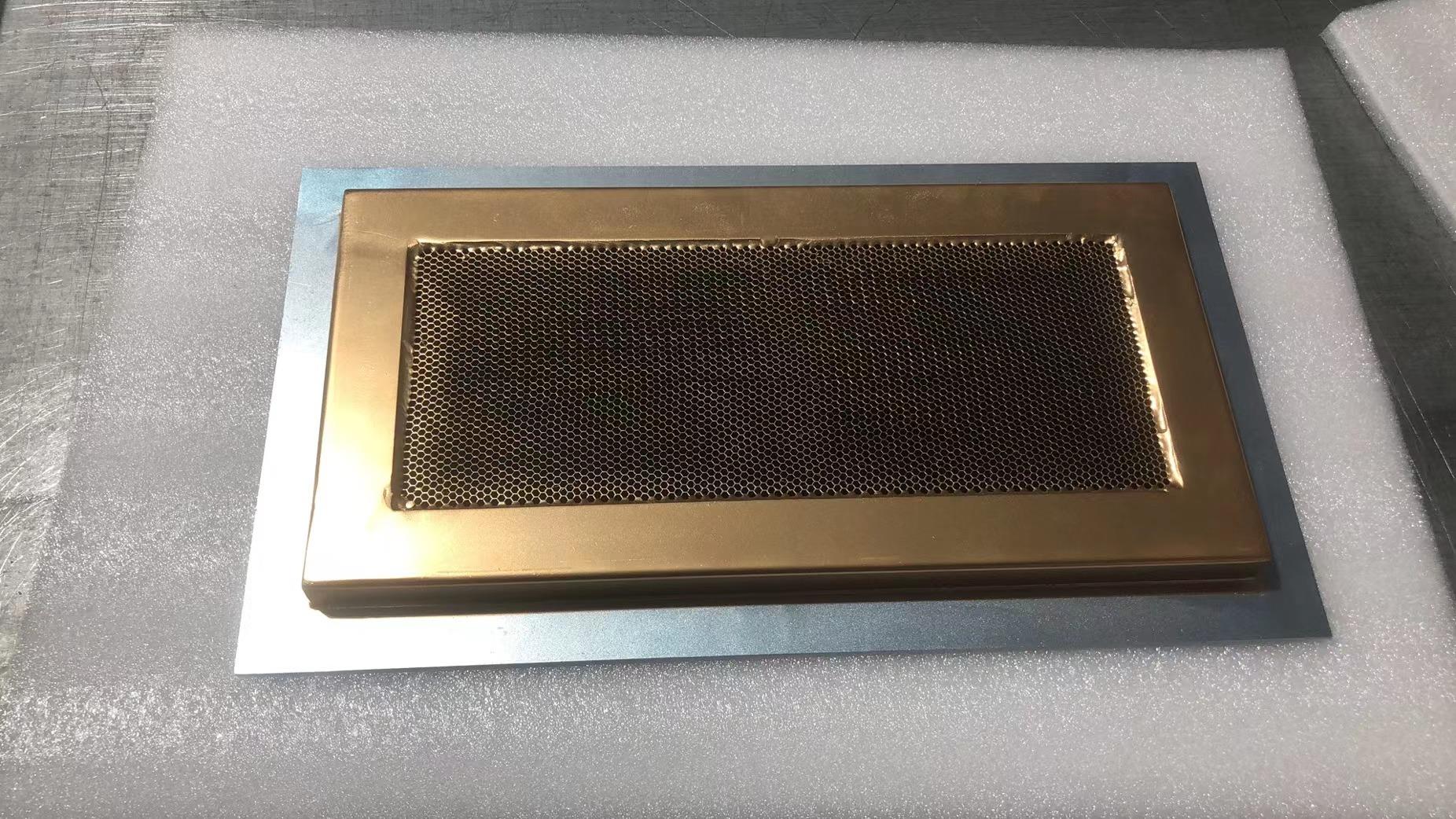

Tin-Plated Steel / Brass Honeycomb Filter Vent Picture:
Honeycomb Vent is a special but indispensable part of an MRI/ RF shielding room and shielded cabinet.
It is usually used for air passes. Its shielding range is ≤20GHz.
In common, we distinguish it from its material, thickness, cell hole size, outer size, with or without frame.
We have Stainless Steel, Tin plate, Brass, even Aluminum materials
Honeycomb Filter Specification:
| Technical Parameter |
| Cell Diameter: | 4.80mm |
| Core Thickness: | 25.00mm |
| Frequency Band | Attenuation |
| 100KHz | > 100dB |
| 1MHz- 10MHz | > 100dB |
| 10MHz- 30MHz | > 100dB |
| 3MHz- 1GHz | > 100dB |
| 1GHz- 10GHz | > 100dB |
| Available Thickness |
| 12.5mm/ 25mm/ 50mm |
| Available Material |
| Steel/ Brass/ Copper |
| Available Size |
| The largest vent size is 600mm*900mm |
Application :
The honeycomb filter and Waveguide product can be well used MRI RF Room, EMC EMI Room installation.
Product features:
the cut-off waveguide ventilation window is composed of hexagonal honeycomb core material with a frame.
On the premise of ensuring efficient ventilation,
the principle of high pass and low resistance of the cut-off waveguide
is used to effectively shield electromagnetic waves. Generally speaking,
the cut-off principle of the cut-off waveguide is l ≥ 5D
(L: waveguide length, D: maximum diameter of waveguide section),
Therefore, the shielding effectiveness of the cut-off waveguide ventilation window
depends on the length of the waveguide (i.e. the thickness of the honeycomb core
and the size of the aperture of the honeycomb core)
Our Honeycomb Waveguide Air Vents are the perfect solution for air ventilation for MRI rooms. Their superior corrosion resistance and low pressure drop allow them to be used in MRI rooms for extended periods of time. The honeycomb construction and window with frame offers superior performance and strength, while the ability to customize the size of the vents allows them to fit any room size. With their high air flow and low pressure drop, these vents are the perfect choice for air ventilation in MRI rooms.
FAQ:
1. Can we get a product sample?
Yes, we can offer a sample to you.
2. As for the honeycomb, what materials can you offer?
We can offer brass / stainless steel/ tin-plated steel materials...
3. What is packing?
It is packed with a wooden case.
